Samsung Galaxy M54

Device Type: Android Smartphone
Launch Date: Mar 22, 2023

Features

Software: Android 13, One UI 5.1
Storage: 128GB 8GB RAM, 256GB 8GB RAM
Hardware: Exynos 1380 (5 nm)
Display: 6.7 inches, 2400 x 1080 pixels, 120Hz Refresh rate
Camera: Triple rear camera: 108MP + 8MP + 2MP, 32MP front camera
Battery: 6000 mAh
Other Features: High refresh rate (120Hz), 5G ready

Samsung Galaxy M54 Technical Specifications

Display

Size: 6.7 inches
2400 x 1080 pixels
120Hz Refresh rate
Protection: Corning Gorilla Glass 5
Misc: Super AMOLED Plus Capacitive
Multi-touch
Scratch resistant

Hardware

CPU: Exynos 1380 (5 nm)
Octa core, 4 x 2.4GHz Cortex A78, 4 x 2.0GHz Cortex A55
Internal Memory: 128GB 8GB RAM, 256GB 8GB RAM
GPU: ARM Mali-G68 MP5
Card Slot: microSDXC (uses shared SIM slot)
SIM: Hybrid Dual SIM (Nano-SIM, dual stand-by)

Software

Software: Android 13, One UI 5.1

Network

Network: UMTS (384 kbit/s ) EDGE GPRS HSPA+ (HSUPA 5.76 Mbit/s , HSDPA 42 Mbit/s ) LTE 5G NSA 5G SA
2G: GSM 850 MHz (B5) GSM 900 MHz (B8) GSM 1800 MHz (B3) GSM 1900 MHz (B2)

3G: UMTS 850 MHz (B5) UMTS 900 MHz (B8) UMTS 1900 MHz (B2) UMTS 2100 MHz (B1)

4G: LTE-FDD 700 MHz (B12) LTE-FDD 700 MHz (B17) LTE-FDD 700 MHz (B28) LTE-FDD 800 MHz (B20) LTE-FDD 850 MHz (B5) LTE-FDD 850 MHz (B26) LTE-FDD 900 MHz (B8) LTE-FDD 1700 MHz (B4) LTE-FDD 1700 MHz (B66) LTE-FDD 1800 MHz (B3) LTE-FDD 1900 MHz (B2) LTE-FDD 2100 MHz (B1) LTE-FDD 2600 MHz (B7) LTE-TDD 2300 MHz (B40) LTE-TDD 2500 MHz (B41) LTE-TDD 2600 MHz (B38)

5G: 5G-FDD 700 MHz (n28) 5G-FDD 850 MHz (n5) 5G-FDD 900 MHz (n8) 5G-FDD 1700 MHz (n66) 5G-FDD 1800 MHz (n3) 5G-FDD 2100 MHz (n1) 5G-TDD 2300 MHz (n40) 5G-TDD 2500 MHz (n41) 5G-FDD 2600 MHz (n7) 5G-TDD 3500 MHz (n78) 5G-TDD 3700 MHz (n77)

Body

Dimensions: 164.9 x 77.3 x 8.4 mm
Weight: 199 g
Colour: Dark Blue, Silver
Misc: Glass front (Gorilla Glass 5), plastic back, plastic frame

Connectivity

WiFi: Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct
Bluetooth: 5.3 A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Visual Remote Control Profile) DIP (Device ID Profile) HFP (Hands-Free Profile) HID (Human Interface Profile) HSP (Headset Profile) MAP (Message Access Profile) OPP (Object Push Profile) PAN (Personal Area Networking Profile) PBAP/PAB (Phone Book Access Profile) HOGP
USB: USB Type-C 2.0, OTG
NFC: Yes (market/region dependent)
Radio: No

Audio

Speaker: Loudspeaker
Earpiece
Audio Port: No 3.5mm jack

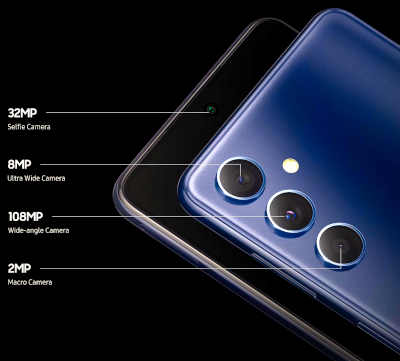

Rear Camera

Resolution: 108 MP, f/1.8, (wide), PDAF, OIS
8 MP, f/2.2, (ultrawide), 1/4 inch, 1.12µm
2 MP, f/2.4, (macro)
Video: 4K@30fps, 1080p@30/60fps
Features: Autofocus
Continuous shooting
Digital zoom
Digital image stabilization
Optical image stabilization
Geotagging
Panorama
HDR
Touch focus
Face detection
White balance settings
ISO settings
Exposure compensation
Self-timer
Scene mode
Phase detection autofocus (PDAF)

Front Camera

Resolution: 32 MP, f/2.2, 26mm (wide), 1/2.8 inch, 0.8µm
Features: 4K@30fps, 1080p@30fps Face unlock
Face detection

Maps

GPS
A-GPS
GLONASS
BeiDou
Galileo

Sensors

Proximity
Light
Accelerometer
Compass
Gyroscope
Geomagnetic
Fingerprint

Battery

Capacity: Li-Po 6000 mAh, non-removable
Misc: 25W wired charging

Specific Absorption Rate - SAR

0.49 W/kg (head)
1.20 W/kg (body)

Other Features

Models: SM-M546B SM-M546B/DS SM-M546BZSHMEC
