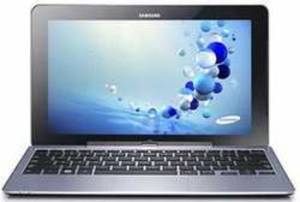

Samsung Ativ Tab 5

Launch Date: August 2012

Features

• Software: Microsoft Windows 8 with full Windows 7 compatability
• Storage and RAM: 128GB Internal Memory, 2GB RAM, Dedicated MicroSD Card Slot Expandable upto 32GB
• Display: 11.6 inch Display, HD (1366 x 768)
• Camera: 8MP Rear Camera, 2MP Front Camera
• Battery: 4080 mAh
• Special Features: Detachable Keyboard Docking System, S Pen, LTE, NFC

Samsung Ativ Tab 5 Technical Specifications

Network

UMTS Tri Band: 850/ 1900/ 2100 MHz LTE Dual Band 4 and 17
Data Speed: UMTS/ LTE

Body

Height: 189.4mm
Width: 304mm
Thickness: 9.9mm (without keyboard), 19.9mm (with keyboard)
Weight: 750g (without keyboard), 1.48Kg (with keyboard)
Color: Mystic Blue

Display

Size: 11.6 inch
Type: LED TFT
Resolution: HD (1366 x 768)
Misc: Aspect Ratio 16:9, 16M Colors, 5 Point Multitouch, Brightness 400 nits SuperBright Plus Technology, Anti Reflective Technology

Hardware

CPU: 1.8GHz Dual Core Intel Atom Z2760 processor
Storage: 128GB eMMC Internal Memory
RAM: 2GB
GPU: Intel SGX545, Integrated Intel Graphics Media Accelerator, Shared Graphics, Intel HD Graphics
Card Slot: Dedicated MicroSD Card Slot expandable upto 32GB
SIM: Yes

Software

Microsoft Windows 8 (32 Bit) with full Windows 7 compatability

Connectivity

WiFi: 802.11 a/ b/ g/ n (2.4GHz and 5 GHz), WiFi Direct, WiFi Channel Bonding
Bluetooth: v4.0
FM Radio: No
USB: USB 2.0
NFC: Yes
Misc: Micro HDMI, Detatchable Keyboard

Audio

Loudspeaker: Yes
3.5mm Jack: Yes
Audio Formats: AAC (LC, V1, V2), MP3, WAV
Misc:

• Music Player, Audio Streaming, MP3/ Music Tones
• Speaker: 0.64 W x 2, 1.6W Stereo Speaker (0.8W x 2)
• Sound Effect: SoundAlive
• Audio Type: HD Audio

Video

Video Formats: 3GP, AAC, AAC+, AMR NB, AMR, AVI, eAAC+, H.263, H.264, MP4, WMV, MOV, MPEG2, MPEG4, RM, RV, QCIF, WB
Misc: Video Player, Video Streaming

Rear Camera

Resolution: 8MP
Video Recording: Yes
Zoom: Digital Zoom
Flash: LED Flash
Features: Auto Focus

Front Camera

Resolution: 2MP
Video Recording: Yes
Zoom: Digital Zoom
Flash: No

Memory

Internal Memory: 128GB eMMC
Card Slot: Dedicated MicroSD Card Slot expandable upto 32GB
RAM: 2GB LPDDR

Sensors

Accelerometer

Battery

Capacity: 4080 mAh Li-Polymer Battery
Features: 7.5V
Misc:

• Battery Life: 13.5 hours (Based on Mobile Mark)
• DVD Play Time: 9.4 hours
• Battery Capacity: 31Wh

Other Features

I/O Ports: USB 2.0 x 1, USB x 2.0 x2 (Keyboard), MicroHDMI, MicroSD
Input Device: Keyboard (80/ 81 Keys), Digitizer Pen (S Pen)

Box Contents

Tablet
Charger
Wacom Digitizer Pen (S Pen) with 1024 level Pressure Sensitivity
User Guide
